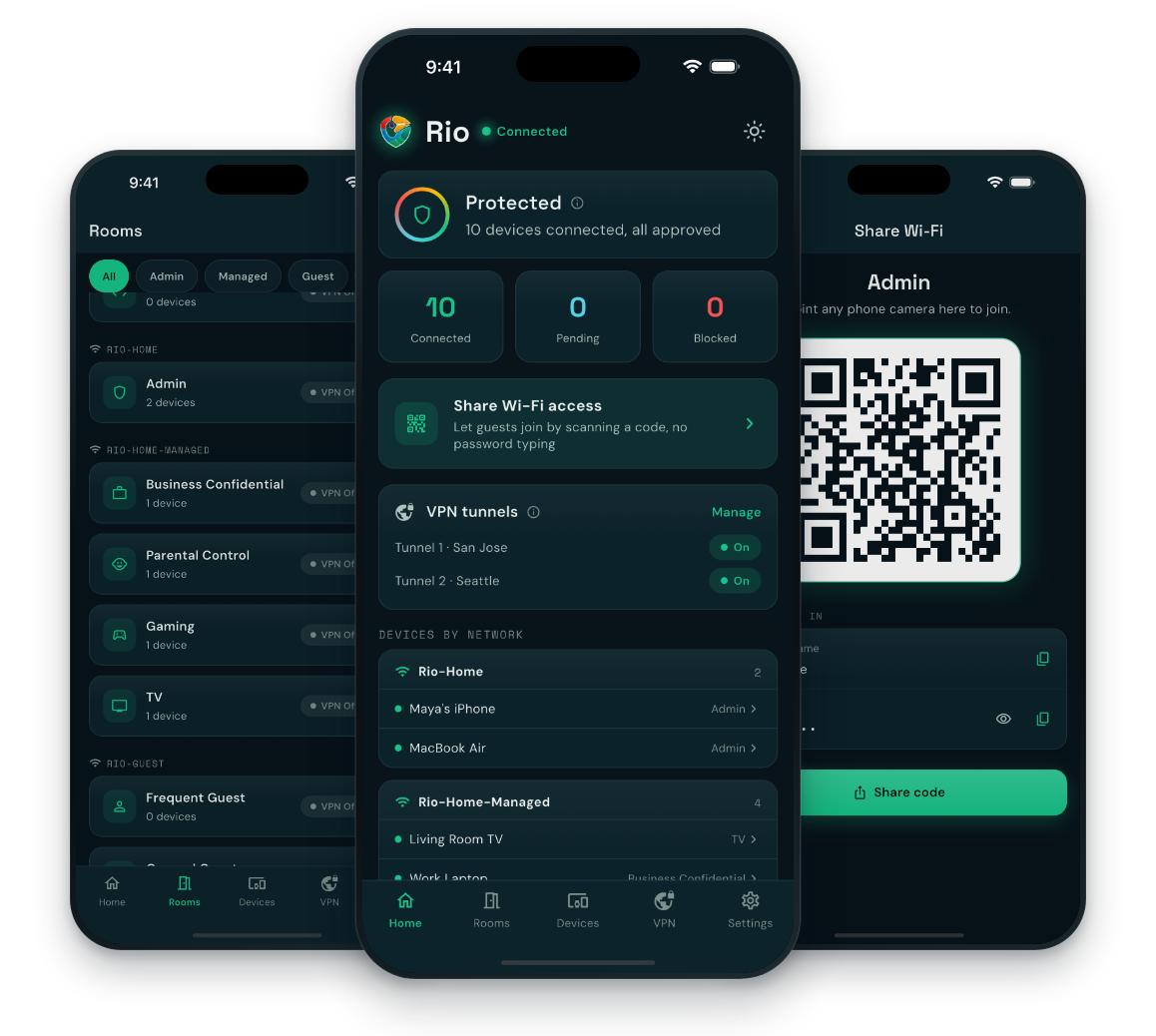

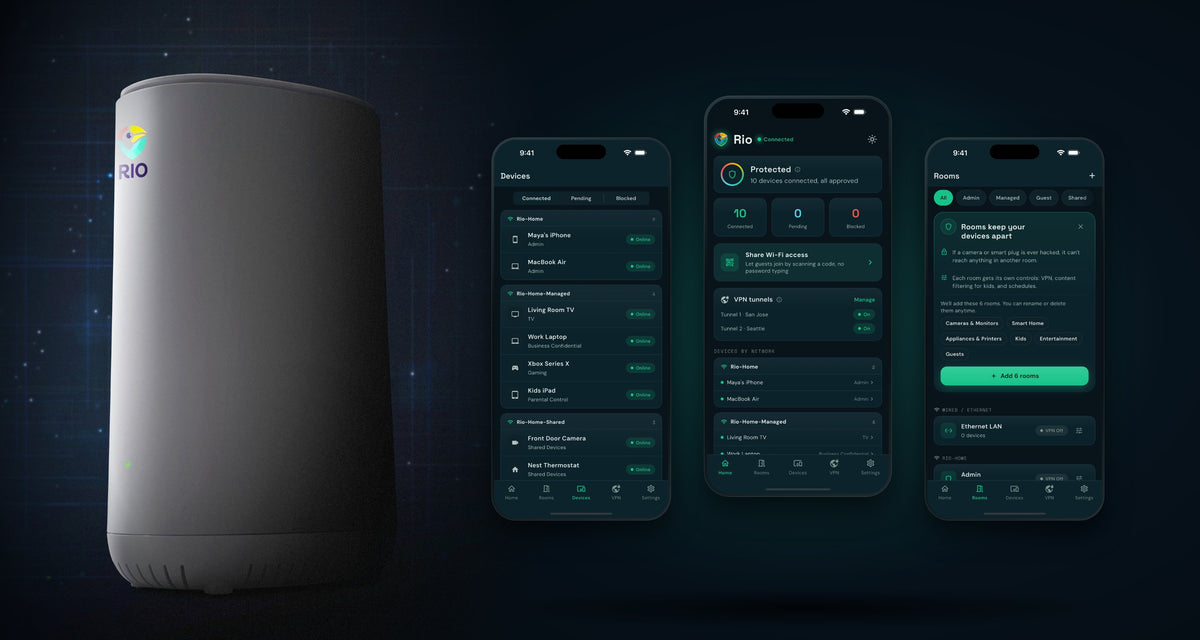

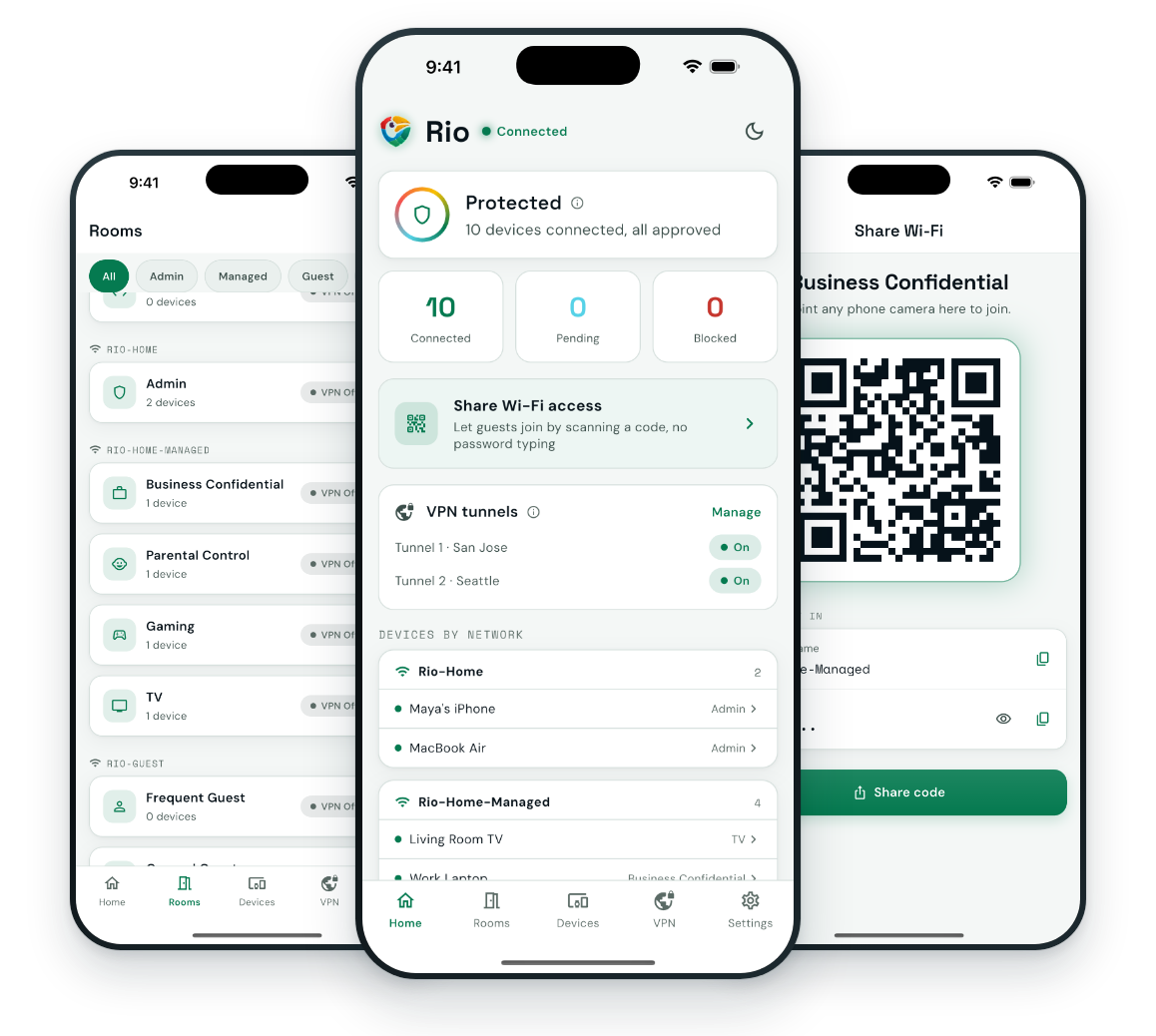

Your Wi-Fi isn't just about speed anymore – it's about keeping your family's digital life private and protected. Rio gives you blazing-fast connection speeds while automatically shielding every device with built-in VPN protection. No complicated setup, no extra apps, no compromises. Just tap the app to take control of your home's digital security and keep hackers, snoopers, and surveillance at bay. Finally, a router that puts your privacy first.
Blanket your entire home with lightning-fast 2,800 Mbps speeds across 4,800 square feet per unit, and connect over 150 devices without slowdown. Need more coverage? RioMesh™ expands up to 38,000 square feet – nearly 4x the coverage of standard mesh systems. This is enterprise-grade performance, engineered for your home.
Use Case: Gateway or Extender (up to 8 units in mesh network)

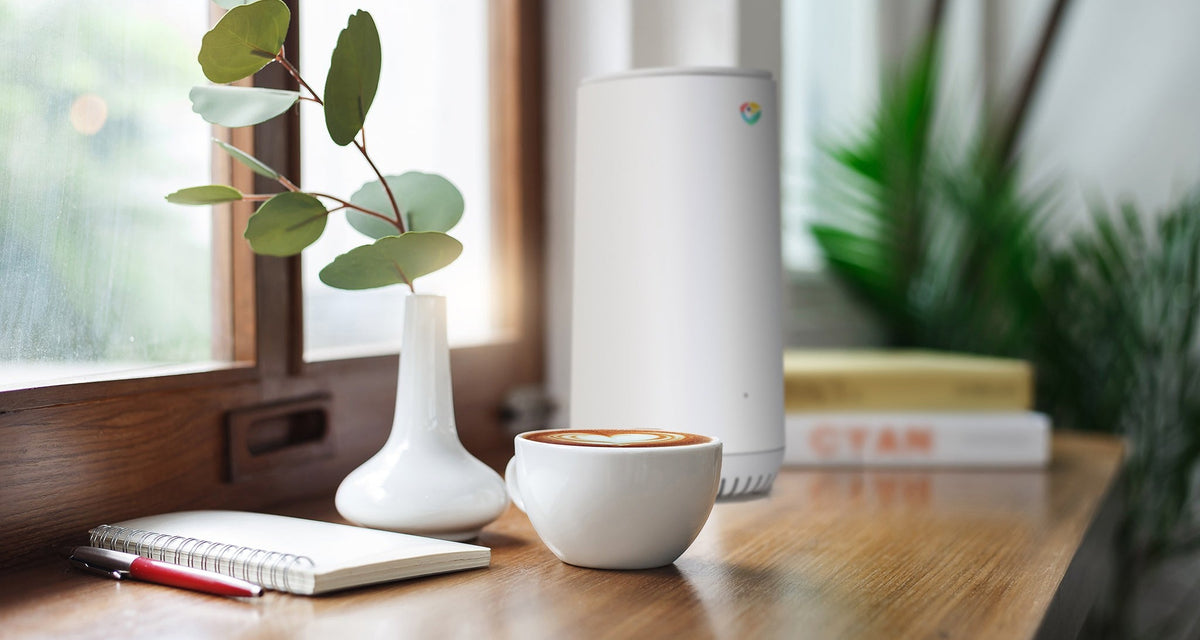

Placement : Desktop/flat surface mounting

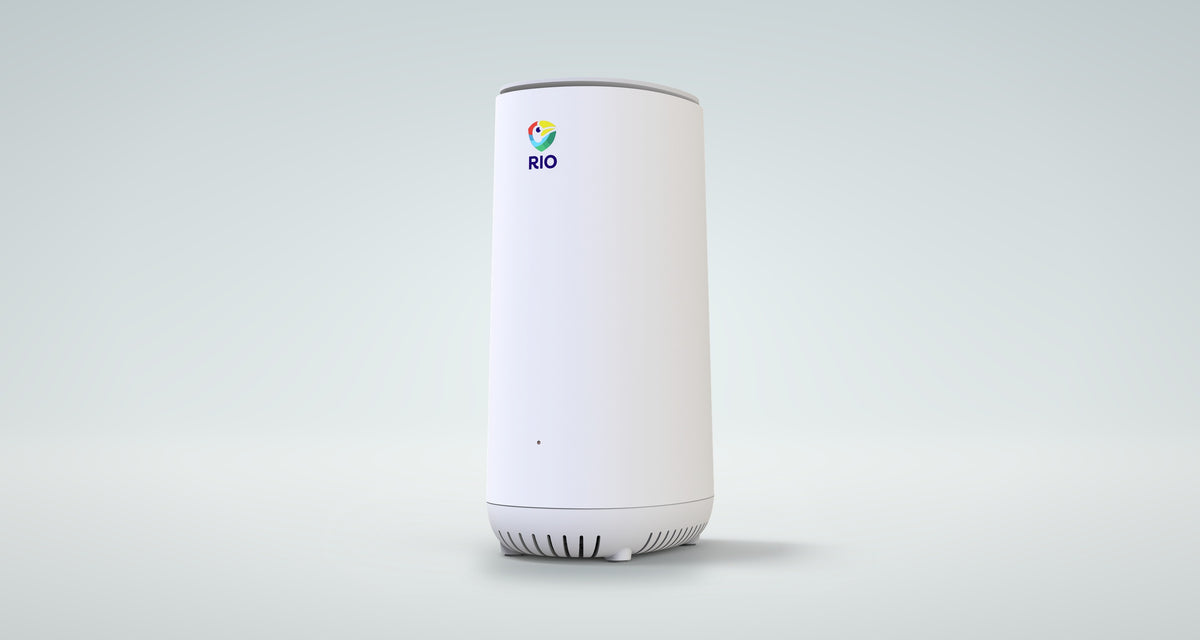

Size: 231mm (H) x 150mm (L) x 100mm (W)
Weight: 900g
Connectivity:
Dual-Band Wi-Fi 6 (802.11ax)
4x4 SU-MIMO & MU-MIMO
2.4 GHz: Up to 1148 Mbps
5 GHz: Up to 2400 Mbps

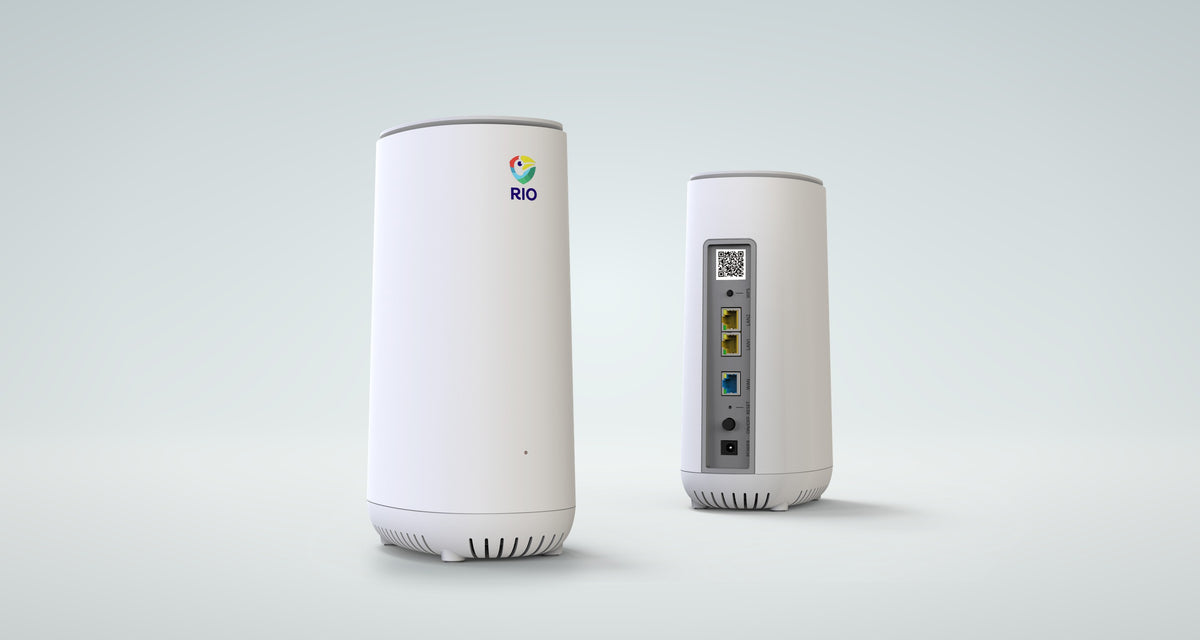

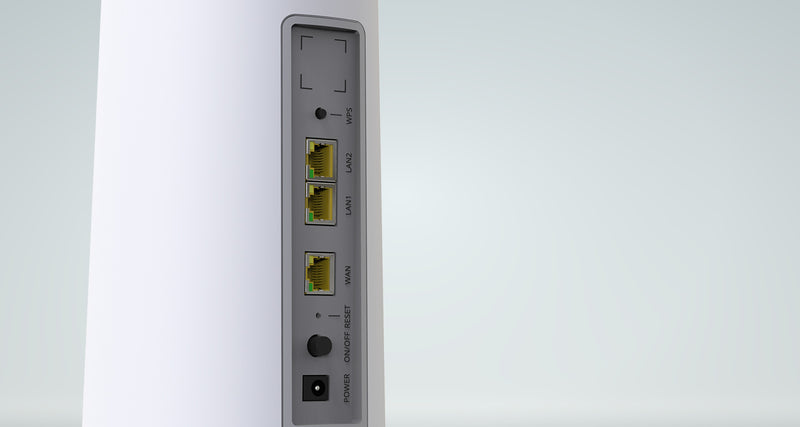

3x 1000 Base-T Ethernet Ports
1x 2.5Gbps WAN Port
Channel Width
2.4 GHz: 20/40 MHz
5 GHz: 20/40/80 MHz
Power
DC input: 12V
Max Power Consumption: 20W
Coverage
Up to 4,800 sq ft per unit
Up to 38,000 sq ft with full mesh (8 units)
Hardware
CPU: Qualcomm IPQ8072A Quad ARM Cortex A53 64bit @2.2GHz
Memory: 1GB DDR4 RAM
Storage: 8GB eMMC Flash
4x internal dual-band Wi-Fi antenna (up to 5.0 dBi)
Network Features
Up to 128 clients per radio
Up to 4 SSIDs per radio
Zero Trust Threat Protection
Built-in VPN Support
SecureRoom™ VLAN isolation
Guest Device Management
Dual-level password protection
Environmental
Operating Temperature: 0°C to 40°C
Operating Humidity: 10% to 95% non-condensing
Storage Temperature: -40°C to 80°C
Storage Humidity: 5% to 95% non-condensing
